E-Bike Troubleshooting Guide

An e-bike that will not start, will not charge, or cuts out on a hill is usually one of three things: the pack is not seated, a brake cutoff is holding the controller open, or a plug worked loose. Buy a motor only after those three fail. This page is the order of checks. It is not a rebuild. Opening a pack, soldering a hall plug, or mapping a controller is a shop job — at your own risk if you do it anyway, and a fire or a crash if the voltage is wrong. The weekly version of this is e-bike maintenance. The buyer’s version of a silent can is how to test a used motor.

Bike Won't Turn On

Seat the pack until the rail clicks. A half-latched battery lights nothing. Many hub bikes also have a rocker on the pack itself, separate from the bar button. Turn that on, then the display. A key, an app lock, and a walk-mode button are three different switches. Try the one the manual names before you decide the bike is dead.

Release both brake levers. A cutoff switch in the lever tells the controller to kill the motor, and a stuck switch tells it that all the time. Himiway’s own hub note still calls a stuck brake sensor the usual “dead motor.” If the display wakes and the motor does not, that switch is the first suspect, not the stator. The next section on brake cutoffs is the test. If the case is warm, swollen, or sweet-smelling, stop. That is a battery fire conversation, not a button sequence.

Battery Won't Charge

Use the brick that came with the bike. A 48-volt pack wants a charger that finishes near 54.6 volts. A 52-volt pack wants about 58.8. Those are not interchangeable. UL 2849 is the bike, the pack, and that brick as one system. A no-name replacement that “fits the plug” is how cells get pushed past a safe voltage. Plug the brick into the wall first and see whether its light comes on. Then the port. Bent pins and a wet socket are the usual no-charge, and they are also how people start a short.

Do not charge a frozen pack. Bring it inside and wait until it is room temperature. Do not charge a pack that took on rain or a pressure washer. Do not jump it with a car charger or a USB brick. A pack that sat at empty until the battery-management system locked it is a brand procedure or a shop, not a second charger stacked on the first. If the brick or the pack gets hot in the first minutes, unplug it and get it outside, away from the door you need. The fire page is the rest of that sentence.

Battery Dies Quickly

A short ride is not automatically a dead pack. Turbo, a headwind, a heavy rider, soft tires, and a cold morning all spend watt-hours faster. Compare the same loop at the same assist. The maintenance guide already says a pack that has lost about a fifth of its energy is a conversation. A pack that used to finish the commute and now falls off after a few miles, or shows one bar and then nothing, is the failure. Storage at 100 percent in a hot garage does that on purpose. Forty to eighty percent, indoors, is the shelf habit.

Voltage sag at the end of a hard ride is normal. The bike slows, the display flickers, and a rest brings a bar back. That is not a cell you can “fix” with a longer charge. Leaving it on the brick overnight does not restore a worn pack, and it is a bad habit on a healthy one. If the drop is sudden and the case is swollen, stop riding it.

Motor Doesn't Run

Split the failure. Display dark is the section above. Display on and motor silent is this one. Brake cutoff first. Then the pedal-assist magnet, a few millimeters off the disc, because a missing pulse makes some controllers act as if you are not pedaling and, on a few bikes, as if the wheel is not turning. If the throttle still rolls the bike in the driveway with the wheel off the ground, the motor is alive and the assist sensor is the problem. If assist works and the throttle does not, the motor is alive and the throttle circuit is the problem. Do not buy a stator until one of those is true.

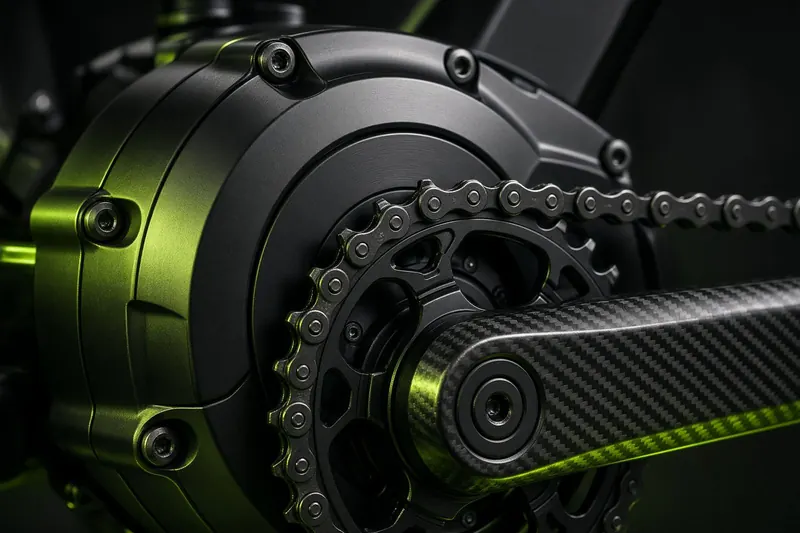

A hub that will not turn and a mid-drive that will not turn are different parts. The hub is the wheel. The mid is a dealer unit on a Bosch, Shimano, or Specialized bike: you do not hall-probe it in the driveway. The spin test — power off, finger-turn the wheel, then unplug two phase wires if it is locked — is written on the used-motor page. If it frees when the phases leave the controller, the short is in the controller. If it stays stiff, the short is in the motor. That is the last check, not the first.

Pedal Assist Doesn't Work

Confirm the assist level is not zero and you are not in walk mode. A cadence sensor only knows that the cranks are turning. The magnet ring slips, or the sensor gap opens past a few millimeters, and the motor never gets the pulse. Look at the disc. It should pass close to the sensor without rubbing. A torque sensor knows how hard you push. When it fails, assist surges, goes flat, or feels uneven. Replacement is often the bottom bracket or the whole drive unit. That is a matched part and a shop ticket. This page will not tell you to pull a crank.

A Class 1 bike has no throttle, so “assist is dead” is the whole motor story. A Class 2 can still be rolled with the throttle if the motor is fine. Use that split. A manufacturer menu that turned assist off, or a class setting you changed, is a menu, not a failed motor. Read the screen before you open a connector.

Throttle Doesn't Work

Some bikes never had a throttle. Class 1 is pedal assist only. A lot of Class 3 menus disable the throttle on purpose because a throttle that works at 28 mph is no longer the class on the sticker. If the bike is a Bosch or Shimano commuter, do not expect a thumb lever to do anything. If it is a Class 2 hub and the throttle used to work, check the brake levers again. The cutoff kills throttle and assist together.

A throttle is a magnet and a sensor in the grip or the thumb paddle. A torn wire at the bar end, where the harness flexes, kills it while pedaling still works. That pattern means the motor is fine. Do not replace the wheel. Do not ride with the brake cutoff unplugged just to “get the throttle back.” The motor will keep pushing while you brake.

Display Errors

Write down the brand, the display name, and the number before you clear it. There is no universal chart. A two-digit code on a no-name controller is not a Bosch code, and a Bosch code is not a Shimano code. Search the number with the brand or you will follow a repair for a different bike. Communication errors after a wash are often a plug that took water, not a failed computer. Dry the connectors. Do not spray them.

Bosch, Shimano, and Specialized codes belong on a dealer diagnostic tool. The serial still talks to the brand. A cleared code that returns on the next block is the bike asking for that tool. Unplugging the display until the number disappears does not fix the fault. It hides it until the motor cuts out in traffic.

Intermittent Power

A bike that runs, dies, and runs again is usually a connection that moves. The battery rail, a bent pin, a harness that rubs at a folder hinge, or a plug that only fails when the bars turn. Wiggling the pack while the display is on is a fair test. If the screen reboots when you do, the rail is the fault. Water in a connector does the same thing a day after rain. Dielectric grease belongs on exposed plugs the brand allows, not packed into the battery rails unless the manual says so.

The other intermittent is heat. The controller or the motor reaches a limit, cuts, and comes back when it cools. That is the overheating section. A brake sensor that cuts only when the lever is slightly pulled — housing drag, a magnet out of place — feels like a random cut on bumps. Hold the lever. If the motor dies every time, it is not random.

Motor Noise

A light cog as the wheel turns, power off, is magnets. That is normal. A grind that changes with speed and stays when you stop pedaling is a bearing in the hub or the mid-drive. A click in time with the chain is the chain, the freewheel, or a rotor tick, and those are bicycle problems with bicycle fixes. Find which one before you condemn the motor. Spin the wheel and watch the rotor. Then the chain. Then listen at the axle.

A mid-drive howl under load, or a hub that growls only when the motor is pushing, is a shop. Water in the can — the failure Himiway and the used-motor page both describe — ends as rust and a grind. Pressure washing is how that water gets in. Do not answer a new noise by riding it until the noise stops.

Overheating

A hub on a long grade in the highest assist turns extra current into heat in the can. Ease off, shift if you have gears, and let it cool. Keeping the throttle pinned because you are close to the top is how windings cook. A mid-drive can use the cassette and usually runs cooler on the same hill. Smell is the line. Hot metal is a warning. Burnt varnish is a motor that has already been overheated. Stop. The power page is why a “peak watt” listing makes this worse: the peak is a few seconds, not a climb.

Do not fix heat with a controller map that allows more phase amps. More amps are more heat. On a Class 2 commuter that map also leaves the federal bicycle definition. Let the stock limit do its job.

Brake Cutoff Problems

Each lever should kill the motor when you pull it, and only then. A bike that never runs, with the display on, is often a switch that already thinks the lever is pulled. A bike that dies the moment your fingers rest on the lever is the same switch, half-triggered. The driveway test on the maintenance page is fair: unplug the cutoff, see if the motor returns, then plug it back in and fix the switch or the lever reach. Do not leave it unplugged. A hub motor will keep pushing through a stop if that wire is out.

Hydraulic levers hide the switch in the body. Cable levers hide it near the blade. You are looking for a magnet and a sensor that no longer face each other, or a housing that sticks. Replacing the whole motor does not fix either one. If the lever also goes to the bar, that is a brake problem — air, a leak, or pads on the backing plate — and the cutoff is only reporting it. The maintenance guide is the bleed interval. A bleed is a shop if you do not already know mineral oil from DOT.

Sensor Problems

Four sensors get blamed for one silent bike. The pedal-assist disc only counts rotation. The torque sensor measures force. The spoke magnet for the speed sensor, if the bike has one, is what some controllers need before they will assist. A missing magnet looks like zero miles per hour and no motor. Hall sensors inside the motor tell the controller where the rotor is. A stuck hall and a shorted phase are the measurements on the used-motor page. Do not solder a melted hall plug on a tailgate.

Water is the shared cause. Axle-cable entry, a side-plate seam, and a hot motor cooling down and sucking damp air in are the paths Himiway still lists. Dry the outside plugs. The inside of the can is not a driveway job. A torque sensor that got wet is often a new bottom bracket, which is why the cadence-versus-torque page sends that failure to a technician.

Controller Problems

The controller is the box that decides amps. When it fails, the display may still light, because the display and the power stage are not the same circuit. The phase-unplug test above is the one split this desk trusts: wheel locked until two of the three fat wires leave the box means the short is in the controller’s transistors, not the copper in the motor. A controller that took water, or one that smells burnt, is a replacement of the same voltage. A 48-volt bike does not get a 52-volt or 72-volt box because the plug matched.

Do not answer a dead controller by flashing a new map. Controller tuning is for a bike you already know is healthy, and it is the wrong first step on a grocery bike. A blown controller is a brick. A mapped Class 2 that now exceeds the class is a different problem, and it is not a repair. Warranty controllers are a brand swap. A cut harness on a Marketplace bike is how that warranty ends.

Error Codes

Treat the number as a label, not a diagnosis you found on a random forum. Write the brand, the display, and the code. Then open that brand’s list. The same digits on a different controller mean a different fault. This desk will not print a universal table, because a universal table is how people replace the wrong part.

Codes that point at the battery, the charger, or a temperature limit are a reason to stop the charge and look at the pack, not a reason to keep resetting. Codes that return after a dealer clears them are a parts conversation. Codes on a Bosch, Shimano, Brose, or Specialized bike are a dealer conversation the first time, while the warranty still exists. Clearing them yourself can be the thing that ends that warranty. A no-name display that only says “E-07” needs the paper that shipped in the box. If that paper is gone, a shop that knows the controller brand is cheaper than a motor.

A display that lights is not a motor that runs. Split those two before you buy a part.

When to Stop Troubleshooting and Visit a Shop

Stop if the pack is swollen, hot, hissing, or smells sweet or like solvent. Get it outside and away from the doorway. Stop if you see smoke. Stop if the motor grinds, the wheel locks, or the varnish smell is already there. Stop if the brake lever reaches the bar. Stop if the bike is Bosch, Shimano, or Specialized and the code is still on the screen. Stop if the next step in your head is opening the pack, splicing phase wires, or buying a charger of a different voltage.

A shop visit is the cheap part while the bike is under warranty. It is also the correct part when the home checks above did not change the symptom. Tell them what you already ruled out: pack seated, levers released, matched brick, which input still works, and the exact code. That is the whole driveway job. The rest is their diagnostic, not a longer night with a multimeter you are guessing at. Corrections to this page go to the desk. Repairs go to a technician.
