E-Bike Brakes: Complete Guide

An e-bike brake has to stop a heavier, faster machine than the analog bike those parts were copied from. Hydraulics are the default once the bike plus the rider is about 250 lb, or the speed is 20 mph. Rotor diameter steps from 160 mm to 180 mm to 203 mm as weight and speed go up. Two pistons are enough on a Class 2 commuter. Four pistons and a larger disc are for cargo, an e-MTB, and an e-moto. Organic pads stay quieter. Metallic pads take heat. A lever that goes to the bar is air, worn pads, or the wrong fluid. A bleed is a shop job unless you already own the kit for that brand. This page is that guide. It is not a SickEBike dyno, and it is not a certification. Pad swaps, rotor bolts, and bleeds: at your own risk. Work with a mechanic if a kid, a cargo load, or a motor cutoff is on the bike.

Mechanical vs Hydraulic

A mechanical disc pulls a cable. You can see the stretch, you can add tension at a barrel, and the parts are cheap. This desk’s chooser calls that fine under about 40 lb of bike, if you actually adjust it. Most e-bikes are not 40 lb. A Level 4 REC is 68.5 lb with the pack. An XP4 is about 69–72 lb. A standard Vorsa is 65 lb without add-ons and 70 with. A 200 lb rider on any of those is already past 250 lb combined. That is the line where this desk wants hydraulics, and it is also the line once the bike does 20 mph.

A hydraulic disc pushes fluid. The lever stays lighter, the pads meet the rotor more evenly, and you are not chasing cable stretch after every wet week. The cost is the fluid. Shimano, Tektro, SRAM, and Magura do not share one bottle. The cap or the brand sheet names it. DOT and mineral oil do not mix. A mechanical brake on a heavy e-bike is a maintenance project. A hydraulic brake on the same bike is a product, until the lever goes soft and nobody bleeds it. The Segway Max G3 is the cable example on this site, and it is a scooter: mechanical discs plus regen, and the cables are the brake. Do not copy that setup onto a 70 lb bicycle because the photo looked tidy.

Rotor Sizes

Diameter is leverage and heat sink. The step this desk uses is 160 mm, then 180 mm, then 203 mm, as weight and speed go up. A 160 mm rotor is the analog-commuter size. The Class 2 hubs this desk keeps writing up — REC, XP4, the front of a Vorsa — are on 180 mm. The Vorsa’s rear is 203 mm. A Light Bee X ships 203 mm and still fades once the motor outruns that disc. An MX4 ships 220 mm. Ultra Bee–class swaps on a Light Bee go to about 240 mm. You do not put a 240 mm rotor on a fork that was built for 180 mm. The adapter, the caliper, and the stay have to clear it. Thickness is a separate number. The XP4 sheet prints 2.3 mm. A Light Bee rear rotor sold as the stock part is 2.0 mm new. The minimum is stamped on the disc you own. Under that stamp, or warped enough that centering will not kill the rub, it is done.

Mount is not a performance grade. Six-bolt and Centerlock both work if the hub matches. On a Light Bee the rear pattern is a 54 mm bore with M6 bolts and the front is a 44 mm mountain-bike pattern with M5 bolts. Mix them and they do not bolt on. That trap is written up on the Sur-Ron brake page. A commuter hub is usually a normal six-bolt or Centerlock. Read the rotor you took off before you order the next one. Direction arrows face the way the wheel turns. Isopropyl on the braking surface. Not the chain rag.

Two vs Four Pistons

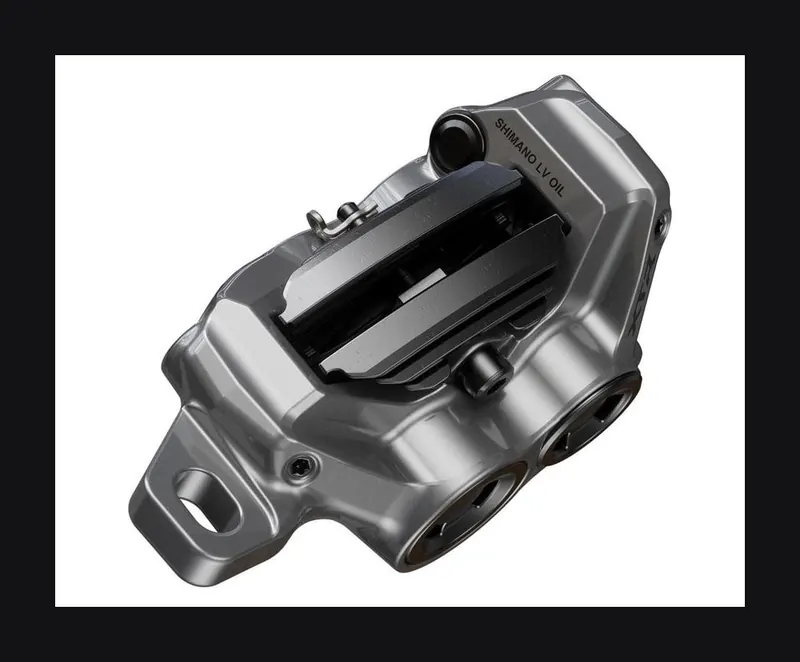

A two-piston caliper squeezes a pad with two pucks. A four-piston caliper uses two pairs, so more of the pad gets pressed and there is more pad in the same kind of body. That is more friction and more heat capacity. It is not “four is twice two.” On a 20 mph Class 2 hub, two pistons are the brake. The REC’s Tektro HD-E3520 is that brake. Four pistons show up when the bike is heavy, fast, or both: this desk’s chooser puts them on a Turbo Levo 4, Magura MT5 is the four-piston name on a Tern GSD, and the Light Bee ships four-piston at both ends. Magura MT5, TRP, and Hope can feel better at the lever than a stock e-moto caliper without making a lot more force, because the pad is still a mountain-bike pad. MBZ’s line, which the Sur-Ron piece already uses, is that a bigger rotor is the budget power add. Pad area is the rest.

Brake Pads

Replace the pad when about 1 mm of friction material is left, or when the wear groove is gone. New pads are often 3–4 mm. Favoritebikes’ figure, already on the maintenance guide: resin on a roughly 55 lb commuter, 30 miles a week, flat, often 1,500–2,500 miles. Wet roads, hills, and cargo cut that in half. A 70 lb e-bike with a throttle commute is the short half, not the long one. Contaminated pads — chain lube or spray on the rotor — get replaced. Wiping a glazed, oily pad and hoping is how the squeal comes back on the next hill.

Buy the shape that caliper lists. A “universal e-bike pad” is a guess. After the wheel is back in, the motor has to cut when the lever moves. A stuck cutoff is a dead motor on a lot of hubs. Himiway’s note, on the used-motor page, is that a brake sensor held in is the common “dead bike.” Bed new pads with a few firm stops from neighborhood speed, not a panic stop from 20 on the first block. The rotor has to be clean or you are bedding oil into the compound.

Organic vs Metallic

Organic, also called resin, is the quiet pad. It bites when it is cold, it is easier on the rotor, and it glazes once the disc gets hot. That is the pad a lot of commuters and a lot of Light Bees leave the factory with. Metallic, also called sintered, is metal in the compound. It holds up in heat and in grit. It is noisier, and it wears the rotor faster. FactoryZ’s sequence, which shops repeat on e-motos, starts with sintered pads before a hose, a bleed, a larger rotor, or a new caliper. On a Class 2 bicycle the same choice is smaller: resin is fine if the levers stay firm and the hills are short. If the pads glaze, or you are hauling, swap to the metallic compound that caliper maker lists. Do not invent a third compound from a forum photo.

Resin is the quiet pad until the hill cooks it. Sintered is the pad that survives the hill, and it is louder.

Brake Fade

Fade is heat. Kinetic energy that does not go into regen has to become heat in the pad and the disc. Speed is the expensive part: energy scales with the square of speed. At the same mass, 50 mph is more than six times the energy of 20 mph. That sentence is why a Light Bee’s 203 mm mountain-bike brake can feel fine in a parking lot and go long on a fire road. The fluid boils, or the resin glazes, and the lever travels farther for the same squeeze. A bigger rotor is more metal to dump that heat into. Braided lines swell less than a rubber hose once the fluid is hot. Regen takes some of the energy before the pad does. On a Level 4, Aventon prints regen as about 10 extra miles. That is pad life and watt-hours. It is not a second brake in a panic stop, and it is not ABS.

Heavy E-Bikes

The motor is not the limit. The wheels, the spokes, and the brakes are. A commuter sticker is often 250–300 lb total. The REC’s line is 300 lb. An XP4 is 330 lb. Put a 200 lb rider on a 70 lb bike and you are at 270 lb before a bag. Mechanical cables that were adequate on a 30 lb analog bike are now a weekly adjustment. Hydraulics at 180 mm are the ordinary answer, which is why the 2026 commuters this desk reviews already ship them. If the lever is firm in the driveway and long at the bottom of the only hill on the route, the pad compound or the rotor is small for that weight. It is not a reason to unlock the bike.

Cargo Bikes

Cargo is the heavy-bike problem with a passenger. The Tern GSD US card this desk read lists Magura MT5 brakes and a gross of 200 kg, 440.9 lb. The bike itself is 32.5 kg, 71.7 lb, before a kid and groceries. Demo with the heavier adult and the seats on. A parking brake is not optional on a trike: the XP Trike 2 has one because a three-wheeler on a driveway rolls. Its hydraulics are still 180 × 2.3 mm, on a 415 lb payload. That rotor is the commuter size on a cargo job. If the lever goes soft, do not learn to bleed on the bike that carries a child. Two-stage braking — a light squeeze, then the rest — is how you keep a longtail from pitching. The cargo page is the load. This page is why the brake has to match it.

E-MTB Braking

An e-MTB repeats the fade problem on purpose. You brake, you roll, you brake again, and the rotor never quite cools. Four pistons are why this desk’s chooser names them on a Levo, and why a trail bike’s lever is a one-finger tool instead of a commute squeeze. Sintered pads belong here once resin glazes. A larger front rotor belongs here if the fork allows it. What does not belong is a Light Bee brake kit on a 750 W fat bike. The Sur-Ron piece already says it: do not put Magura Gustavs on an Aventure 3. Match the brake to the speed and the watt-hours. A Class 3 trail bike at 28 mph is not a 50 mph e-moto, and a fire-road hub is not a bike-park Levo. Full-face is the helmet on the e-moto. A CPSC lid is the bicycle. The class chart does not move because the caliper got bigger.

Adjustment

Mechanical: the first month is cable stretch. Add tension at the barrel until the lever firms up before it hits the grip, then center the caliper so the rotor runs free. The Max G3 ownership note on this site is the same sentence: mechanical discs need tension in the first month. Hydraulic: do not hunt for a barrel that is not there. Loosen the caliper bolts, squeeze the lever so the pads center on the rotor, tighten the bolts, spin the wheel. A bite-point dial, on the brands that have one, is reach and feel. It is not a bleed. If the lever still goes to the bar, you are past adjustment. Rub that survives centering is a bent rotor or a piston that is not retracting. Stop riding it.

Pad Replacement

Wheel out. Note which pad was left and which was right. Pull the pin or the bolt the caliper uses, not a random spoke. Push the pistons back square, with a plastic tire lever, not a screwdriver on the piston face. If one piston shoots out, that caliper is now a shop visit. New pads in, pin back, wheel in, a few bed-in stops. Then the cutoff test: lift the wheel or stand over the bike, ask for assist, and pull the lever. The motor stops. If it does not, the sensor is unplugged or the lever is not reaching the switch. Do not ride that bike to work to “see if it clears up.” At your own risk. A cargo bike or a bike you do not know the pad shape for is a mechanic.

Rotor Replacement

Replace a rotor that is under the thickness stamped on it, cracked at a bolt hole, or bent enough to pulse after the caliper is centered. Match diameter, thickness, bolt pattern, and direction. Clean the new disc with isopropyl before the pads touch it. A fingerprint is film. On a hub motor, rotor bolts walk out from vibration. The Light Bee dealer note is blue Loctite and the right bolt: M6 on that 54 mm rear, M5 on the 44 mm front. Torque is the number on the rotor or the bike, not a feeling. Pads and a new rotor bed in together. Old glazed pads on a new disc bring the glaze with them.

Bleeding

A spongy lever that comes back after new pads is air, or fluid that has taken on water and boiled. BikeTips treats a bleed as a yearly job. Himiway’s service note, already cited on the maintenance guide, is 1,500–2,000 miles, or when the lever goes long. The bottle has to match the brand. Magura is mineral oil. A lot of motorcycle calipers are DOT 4. SRAM, Shimano, and Tektro each specify a fluid. Mixing them ruins the seals. The procedure is a funnel or a syringe at the lever and a bleed port at the caliper, bubbles out, then a firm lever with the wheel free. This desk will not print a “universal bleed.” The first one, and any bike that carries a child, is a shop. A 70 lb cargo bike is a bad classroom. If you already own that brand’s kit and you are bleeding your own commuter, you are still doing it at your own risk.

Brake Upgrades

On a bicycle the order is small. Pads the caliper maker lists. Then a larger rotor if the fork and the frame clear it. Then a hydraulic kit if the bike shipped with cables and you haul cargo. That kit is a safety upgrade. It is not a class change, and it does not make a 750 W bike into something else. Leave the hangtag alone. The mods list already puts sintered pads and a bigger rotor in the legal column, and a controller in the column that turns a bicycle into a motor vehicle.

On an e-moto the order is the one FactoryZ published and this desk already repeats: sintered pads, a real bleed, a larger front rotor, then a different caliper if the motor still outruns the heat. Braided lines sit in that sequence because rubber hoses balloon. A 220 mm rotor is the budget step shops quote. Ultra Bee calipers on a 240 mm disc are the “moto” step on a Light Bee. Six-piston listings showed up in 2026 without an independent stop-distance test on this desk. Treat them as an experiment. Do not buy Gustavs for a fat-tire Class 2 because a Sur-Ron video used them. The full sequence, including the 54 mm rear trap, is the Sur-Ron brake piece.

Troubleshooting

The pre-ride is still the short version. Both levers firm before they hit the bar. The motor cuts when a lever moves. A new tick is rotor rub, a loose spoke, or a pad that is down to metal. That check is also the first block of the maintenance guide. If you only change three things on a bike you already own: pump the tires, confirm the cutoff, and put a compound the caliper lists on the bike you actually ride. If the bike is a Light Bee or a Talaria, read the e-moto brake page before you buy a controller. The controller adds heat. The rotor is the part that has to eat it.
